Optofluidics, Liquid Crystals, Plasmonics, Metamaterials and Photonic Crystals

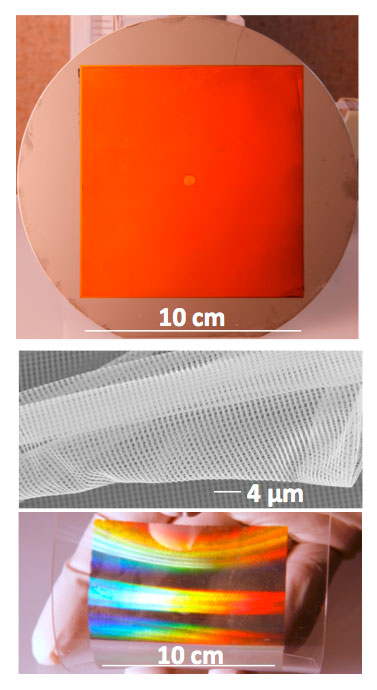

In this project, we are developing unusual materials and structures that can manipulate the flow of light in ways that are useful in optical sensing, photovoltaics, solid state lighting, fiber optics and other applications. The work includes efforts on plasmonics, metamaterials, optofluidics and photonic crystals. Recent accomplishments range from the first large area negative index metamaterials and three dimensional photonic bandgap materials, to unique 'quasi-3D' plasmonic crystals and imaging-based sensors with sub-monolayer sensitivity. In fiber optics, we developed and commercialized classes of devices that provide tunable operation for chromatic dispersion compensation for high-speed, wavelength-multiplexed lightwave communication systems. Our early work in microfluidic optical fiber helped to establish the field of optofluidics.

Recent papers:

M.E. Stewart, C.R. Anderton, L.B. Thompson, J. Maria, S.K. Gray, J.A. Rogers and R.G. Nuzzo, “Nanostructured Plasmonic Sensors,” Chemical Reviews 108, 494-521 (2008).

B.R. Acharya, C. Madsen, L. Moller, K.W. Baldwin, R.A. MacHarrie, C.C. Huang, R. Pindak and J.A. Rogers, "In-Line Liquid Crystal Microcell Polarimeters With Applications in 40 Gb/s Systems",Applied Optics, 42(27), 5407-5412 (2003).

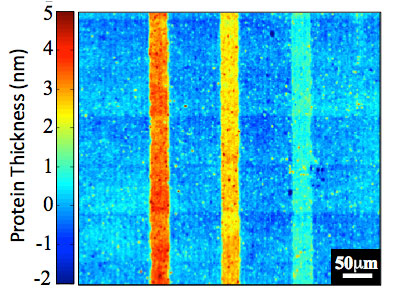

J. Yao, M.E. Stewart, J. Maria, T.-W. Lee, S.K. Gray, J.A. Rogers and R.G. Nuzzo, “Seeing Molecules by Eye: Surface Plasmon Resonance Imaging at Visible Wavelengths with High Spatial Resolution and Submonolayer Sensitivity,” Angewandte Chemie International Edition 47, 5013-5017 (2008).

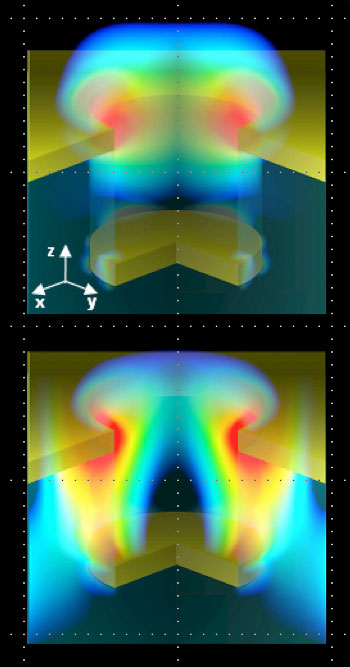

M.E. Stewart, N.H. Mack, V. Malyarchuk, J.A.N.T. Soares, T.-W. Lee, S.K. Gray, R.G. Nuzzo and J.A. Rogers, “Quantitative Multispectral Biosensing and 1D Imaging Using Quasi-3D Plasmonic Crystals,” Proceedings of the National Academy of Science USA, 103(46), 17143–17148 (2006).

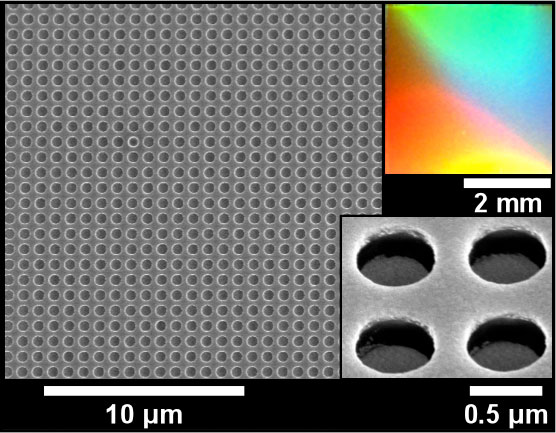

V. Malyarchuk, F. Hua, N.H. Mack, V.T. Velasquez, J.O. White, R.G. Nuzzo and J.A. Rogers, “High Performance Plasmonic Crystal Sensor Formed by Soft Nanoimprint Lithography,” Optics Express 13(15), 5669-5675 (2005).

R. Lin and J.A. Rogers, “Molecular-Scale Soft Imprint Lithography for Alignment Layers in Liquid Crystal Devices,” Nano Letters 7(6), 1613-1621 (2007).

P. Mach, C. Kerbage, M. Dolinski, K.W. Baldwin, R.S. Windeler, B.J. Eggleton, J.A. Rogers, "Tunable Microfluidic Optical Fiber",Applied Physics Letters, 80(23), 4294-4296 (2002).

A.J. Baca, T.T. Truong, L.R. Cambrea, J.M. Montgomery, S.K. Gray, D. Abdula, T.R. Banks, J. Yao, R.G. Nuzzo and J.A. Rogers, "Molded Plasmonic Crystals for Detecting and Spatially Imaging Surface Bound Species by Surface-Enhanced Raman Scattering," Applied Physics Letters 94, 243109 (2009).

E. Cubukcu, F. Degirmenci, C. Kocabas, M.A. Zimmler, J.A. Rogers and F. Capasso, "Aligned Carbon Nanotubes as Polarization-Sensitive, Molecular Near-Field Detectors," Proceedings of the National Academy of Sciences USA 106(8), 2495-2499 (2009).
